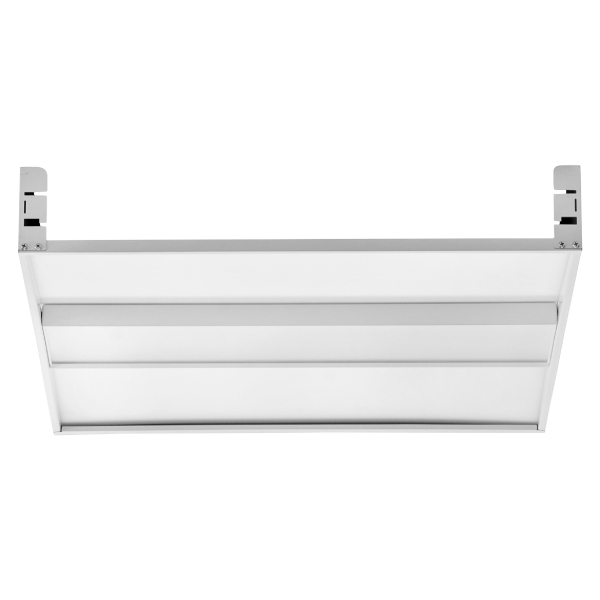

LMT22 27W

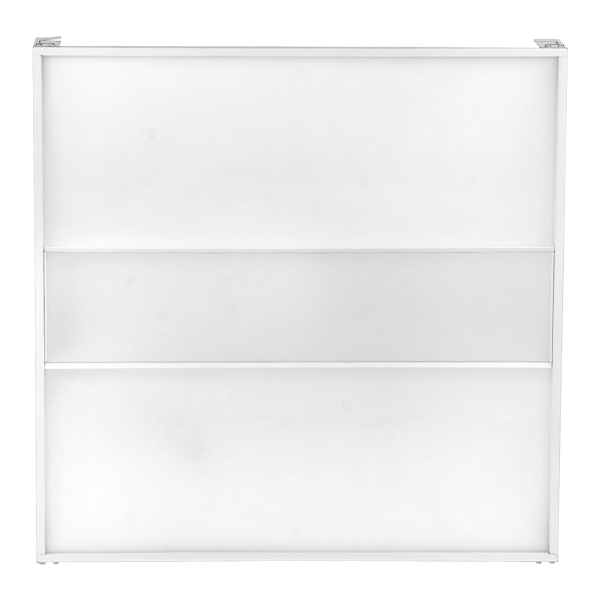

LMT22-product-pic-2.jpgLMT22 27W
27W 2x2 LED Troffer
The LMT22 LED Troffer delivers high-quality illumination with 80+ CRI and an efficacy of 104–110 lumens per watt. Featuring both UL and DLC listings, it ensures reliable performance and energy efficiency. Available in 3500K, 4000K, and 5000K color temperatures with 0–10V dimming, it offers flexibility for a variety of lighting needs. Designed for recessed installation, it is ideal for both new construction and retrofit applications, making it a versatile solution for offices, retail environments, educational facilities, healthcare, hospitality, and government spaces.
Resources
- Efficacy: 104-110 Lm/W
- Delivered Lumens: 2,810 (40K) / 2,988 (50K) Lumens
- Power: 27 Watts
- CRI: Ra>80
- CCT Options: 3000K, 4000K, 5000K
- Input Voltage: 100-277 VAC
- Input current: 0.4 – 0.16A
- THD:<20%
- Standard Warranty: 5 Year Warranty
- Standard Lifetime: Designed to L70 minimum 50,000
- hours Installation Options: Recessed
- Sign Current: 0.04-0.37 MA
- Dimmable: 0-10V
- Dimensions: L 23.8” x W 23.8” x H 3.94″
CCT
- 3500K
- 4000K
- 5000K
CRI
- 80
Dimming Protocol
- 0-10 V
- SPI
Dimming Range
- 50%
Lamp Source
- Fluorescent
- LED
- OLED
Listings
- UL
Mounting
- Cove
- Recessed
Ratings & Compliance
- DLC
- LM80
Voltage
- 120-277 V
Watts
- 27
